TV Transmitters

Meeting the needs of the TV industry

BE's TV Transmitters

Broadcast Electronics transmitters and modulators / exciters are the most advanced and future proof solutions in the Broadcast market. The BE-TV modulator / exciter provides maximum integration flexibility on new or existing transmitters and is fully ready for IP based networks and all international standards including ATSC3.0, DVB-T/T2 and ISDB-T operation. The transmitters employ the latest amplifier technology providing the highest efficiency and greatest flexibility available.

Broadcast Electronics' TV Transmitters full range

Genesis Series Modulators / Exciters

The most advanced and future proof modulation solutions in the Broadcast market. Every digital and analog standard. Ideal for upgrading your old tv transmitter.

Gap Filler (OCDR) / Translator

Part of the Mod-Ex II range of modulators/exciters is version that provides Gap fillers or On Channel Digital Repeaters and Translators options. The two model numbers are BE-TV25-GFU and BE-TV200-GFU. Additional Power levels are available upon request.

Genesis Compact Series
Low Power

The Genesis Compact low power TV transmitters series include 3 different models: TV100, TV200, TV600

Genesis Elite Series
Medium Power

The Genesis Elite medium power TV transmitters series include 6 different models: TV0k6, TV1K2, TV1K8, TV2K4, TV3K0 and TV3K6

Genesis Aqua-I Series
High Power

The Genesis Aqua-I high power TV transmitters series include 6 different models: TV3K, TV4K5, TV5K7, TV7k5, TV8K5 and TV11K

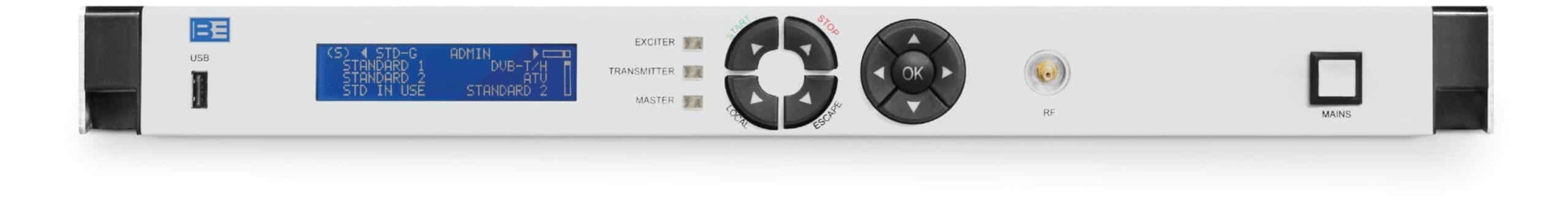

Genesis Exciter Series

The most advanced modulator / exciters

The BE-TV™ GENESIS Exciters exciters are the most advanced and future proof solutions in the Broadcast market. Fully ready for IP based networks and all international standards including ATSC3.0, DVB-T/T2 and ISDB-T operation.

The BE-TVTM GENESIS ELITE series of modulator/exciter is specifically designed to meet the needs of the professional broadcast industry, providing the ideal platform to transition from ATSC to ATSC3.0 or analog PAL/NTSC to either ISDB-T or DVB-T/T2.

The BE-TVTM MOD EX II employs the latest components and technology, the result is extremely reliable, easy to configure and maintain, transmitter/ transposer/translator/gap filler (OCDR).

Two different modulation standards can be loaded and switchable both locally and by remote allowing to reconfigure the unit according to the actual or future needs.
Output power options from +10dBm (all bands) up to 20W (band specific) is available.

Key features and benefits

1-RU exciter that supports two modulation waveforms on the same hardware platform.

High performance digital adaptive linear and nonlinear precorrection for maximum transmitter performance and PAPR clipping technology for maximum optimization of transmitter power efficiency and/or transmitter MER performance.

Designed to meet ATSC 3.0 early adopters’ plan to commercially deploy

Idea for transmitter manufacturer’s demand for integrating a “ready-to-use” and straight-forward high-end exciter within their new ATSC 3.0 transmitter designs

Switching between ATSC 1.0 and ATSC 3.0 either by local or remote command

VHF and UHF
(selectable frequency from 30MHz to 790 MHz in steps of 1Hz)

Single exciter version: output power selectable from -10 dBm to +10dBm in steps of 0.1dB

Dual exciter version with automatic switch-over and redundant power supply

SW based Automatic Level Control

Seamless switching (ATSC3.0 option)

User friendly intuitive WEB GUI control for use with standard Web Browser

SNMP client Get/Set/Trap

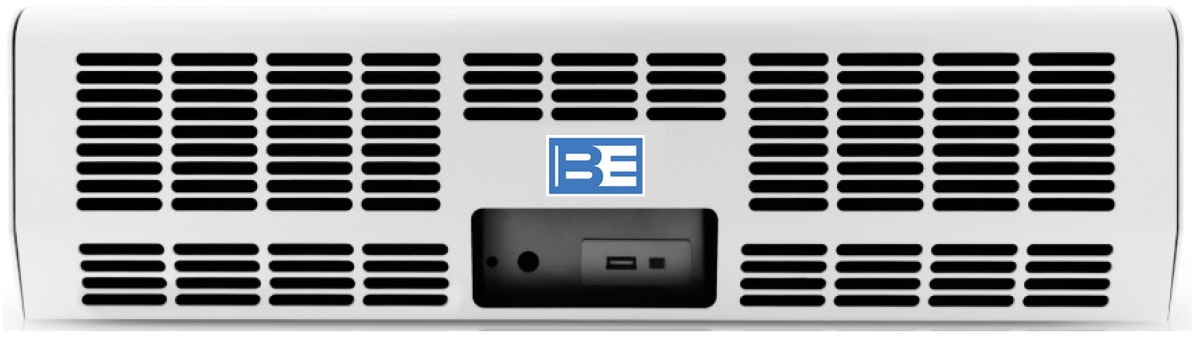

Genesis Compact Series

Low Power TV Transmitters from 100W to 600W

The BE-TV™ GENESIS Compact Series transmitter line is specifically designed to meet the needs of the LPTV industry, providing an output from 150W to 700W in ATSC and from 100W to 600W in ATSC3.0/DVB-T/ISDB-T.

It employs the latest components and technology, has built in redundancy, the result is an extremely reliable and easy to maintain transmitter.

The system includes a dual-cast modulator / exciter with built-in ATSC3.0 capability (or any other international standard) which protects you for the future. Highest efficiency provided by the latest LDMOS amplifier design.

3 available models: TV100, TV200, TV600

Key features and benefits

Compact design

Extremely easy installation and maintenance

Single Frequency Network (SFN) Compatible

Fully broadband on UHF or VHF frequencies

Extremely low power consumption

High efficiency air cooling system

Latest LDMOS technology

2 ASI (4 for DVB)

GbE available inputs (on 600w)

Video input 2 BNC connect (for analog)

Audio input 2 XLR connect (for analog)

SNMP / Web Server remote control

CAN-bus internal communication

USB port for HPA section

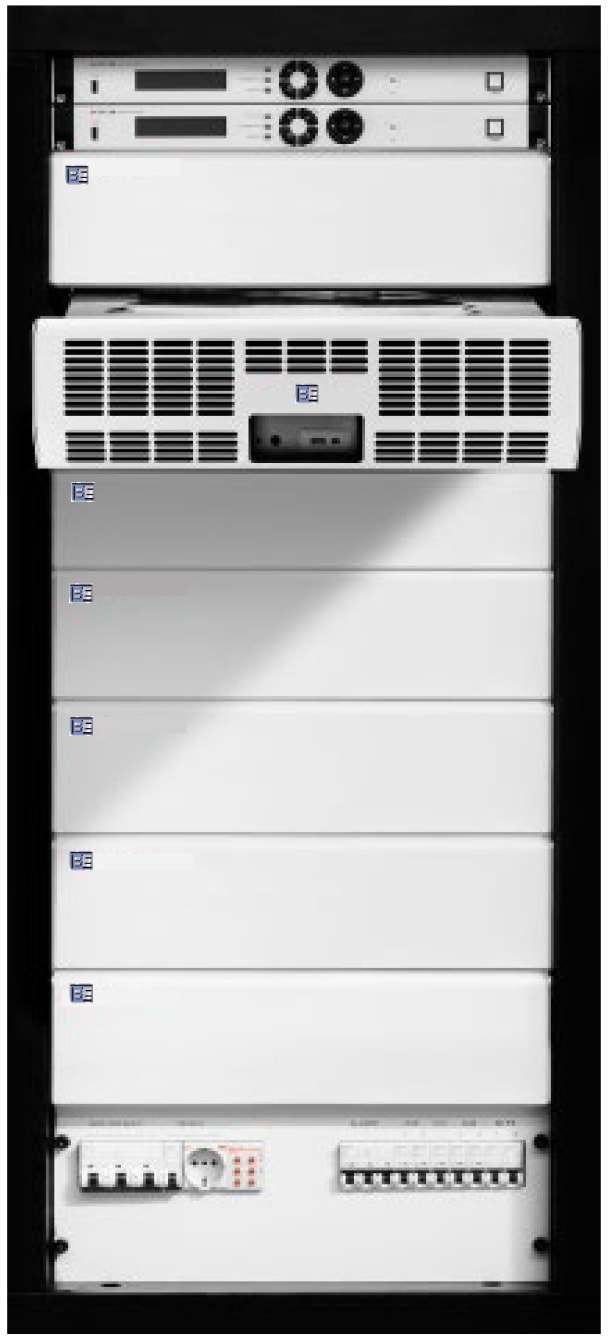

Genesis Elite Series

Medium Power TV Transmitters from 1.5kW to 4.5kW

The BE-TV™ GENESIS ELITE series transmitter line is specifically designed to meet the needs of the professional broadcast industry, providing an output from 1.5kW to 4.5kW in ATSC and from 1.2kW to 3.6kW in ATSC3.0/DVB-T/ISDB-T.

Medium Power TV Transmitters

6 available models: TV0k6, TV1K2, TV1K8, TV2K4, TV3K0 and TV3K6.

Key features and benefits

Multi-standard operation (DVB-T/H/T2, ATSC, ISDB-T/Tb, Analog)

Dual-Cast operation

Fully broadband on UHF frequencies

Low power consumption

Doherty technology available as option on power amplifiers

Extremely compact design

Easy installation and maintenance

Modular design

Hot-pluggable amplifier modules

Latest LDMOS technology for power amplifiers

Band-pass filter inside transmitter rack

Adaptive precorrection

2ASI (4 for DVB), GbE available inputs

SNMP / Web Server remote control

More features available…

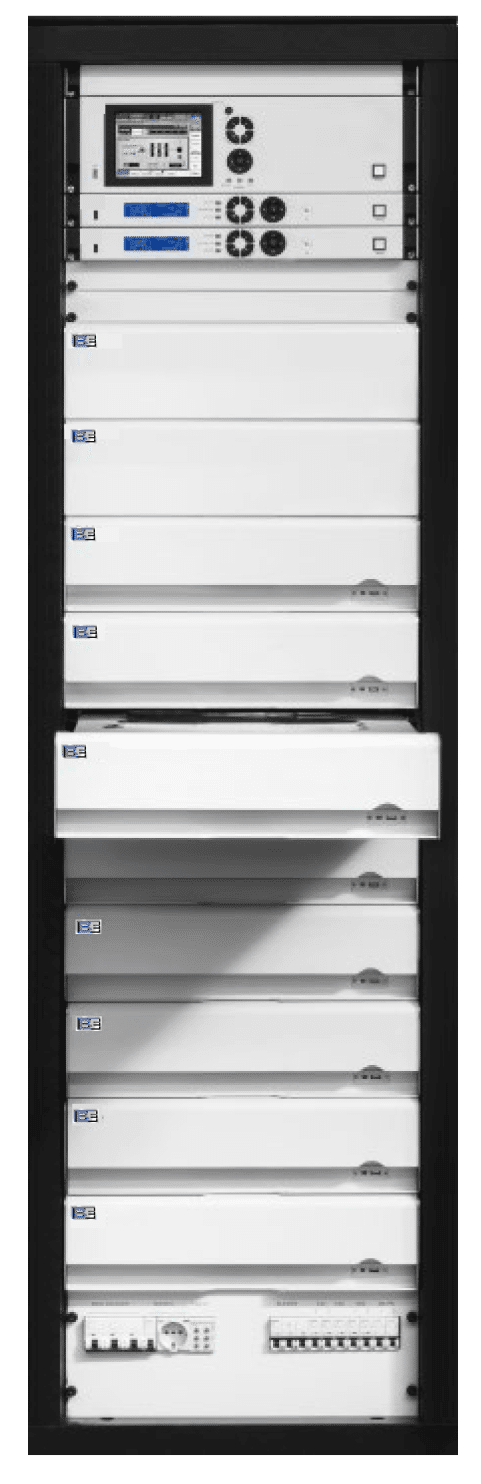

Genesis AQUA-I Series

High Power TV Transmitters from 3kW to 11kW on a single rack (19'')

The GENESIS AQUA-I (GAI) line is the result of years long research in terms of reliability – size reduction – structural simplicity – modularity and scalability – competitive price (one of the best priced transmitters in its category).

High Power TV Transmitters

The GAI Liquid Cooled transmitters, perfectly meet the needs of customers that require Medium / High Power solutions.

The line can deliver from 3kW up to 11kWrms in ATSC/ATSC3.0 standard (up to 20kWps Analog), implemented on a single rack (19”).

Its qualities of compactness, modularity and redundancy have been applied to the design of the transmitter as well as of the cooling system. The Internal cooling system includes dual pumps, expansion tank and extensive cooling system monitoring.

The cabinet requires minimal floor space, but still offers ease of access for monitoring and maintenance.

The new line maintains the traditional safety features of BE transmitters and improves the ease of intervention by the operators thanks to the extremely simple design.

The wealth of technical support and design from the Elenos group allows the optimization of manufacturing processes and allows BE to offer, a low capital investment, reduced operating costs, ease of maintenance and simple spare parts management.

All transmitters can be equipped with a second modulator / exciter and the associated automatic switchover unit, the two units being integrated into the transmitter rack.

6 available models: TV3K, TV4K5, TV5K7, TV7k5, TV8K5 and TV11K

financing-icon-min
EQUIPMENT LEASING

Financing options available

Our equipment leasing professionals partners will create custom-designed financing based on your unique situation. Your needs will be met with fast approval and flexible rates

Superior Remote Interface

BE TV GUI

All BE’s Transmitters feature SNMP Level III IP Connectivity:
• From your PC, your tablet, or your phone.
• Three Levels with password access: view only, limited access, and Chief with FULL CONTROL
• Overall Status at a glance or dig deeper to access each Power Amplifier, each Power Supply, and an advanced log for history.
