Radio Transmitters

Reliability – Redundancy – Audio Quality

STX Series

The Advantage

From 60W to 20kW

When it comes to radio transmission, Broadcast Electronics’ FM transmitters are hard to beat.

Standout features include true proportional VSWR foldback for transmission resiliency and independent IPAs and power supplies that give you full standby power without having to buy another transmitter.

Large, removable panels provide access to every major assembly for quick repair in the unlikely event of a problem, and advanced controllers offer more in-field information than ever.

Features available in all STX Radio Transmitters / Exciters

Multiple Audio Inputs with Auto-failover capabilities

RDS Generator Built-in (Static and/or Dynamic with TRE)

Synchronous FM Compatible

Unparalleled Audio Quality

AES over Composite / Baseband 192 Capable

Next Generation Digital Radio Capable (HD Radio DRM+)

SNMP Level III Control and Security

Perfect for translators with built-in FSK-ID

IP Connectivity with GUI

Excellent AC to RF Efficiency

Built-In Audio Delay

Broadcast Electronics' Radio Transmitters full range

STX Exciter

Exciter Technology: STXe60, STXe500, CPE (Controller Plus Exciter).
At the core of the STX series of exciters is the CPE.

STX Low/Medium Power
From 1kW to 5kW

STX LP Series Generation II: The STX LP is built on the 1kW model and provides the ability to increase power up to 5kW by simply adding additional PA modules and appropriate sized combiner.

STX High Power
From 10kW to 20kW

STX10, STX20, STX3: They have been intelligently designed to offer the perfect combination of audio quality, reliability, redundancy, serviceability, and efficiency in a compact design.

HD Radio

All BE AM and FM transmitters are
HD Radio ready and easily upgradable to broadcast in-band on-channel (IBOC).

Elenos Transmitters

Elenos transmitters combine ultra high efficiency, high reliability and low energy consumption in compact rack mountable units.

AM Series
From 500W to 10kW

BE still believes in AM! From 500W to 10kW, BE still provides the most reliable, best sounding AM transmitters.

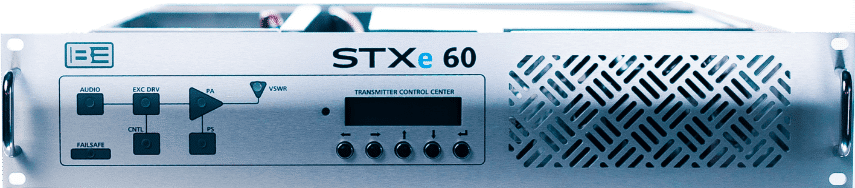

STXe Digital 60W | 500W

Exciter with legendary quality and performance

Providing unparalleled audio performance, the new STXe exciter will continue BE’s dynamically engineered excellence. STXe exciters have a small footprint, are operational in FM, FM + HD Radio, HD Radio only, DRM+, or FM + DRM+ modes, and range in power from 60W to 500W.

STX LP Series Generation II

1kW | 2kW | 3kW | 5kW

Designed for the world’s digital standards and unique applications
• Multiple Power Amplifier Modules & Power Supplies
• Redundant Exciter & Controller Options
• HD RadioTM Capable
• Synchronous FM Systems
• IP Connectivity for complete transmitter status
• Field Scalable from 1kW up to 5kW
• Dual Controller and Exciter Option

Performance

Exciter audio performance has been a hallmark of BE for decades.

• The new exciter and controller in the STX LP provides audio performance that rivals BE’s legendary FX 30, FX 50, and FXi Exciters
• Improved AC to RF efficiency reduces energy costs
• New enhanced GUI provides access to all important transmitter parameters
• SNMP Level 3 Control and Security

Redundancy

• Multiple power amplifier decks and power supplies for 2kW, 3kW, and 5kW versions allow the transmitter to be on air in emergency situations
• Unique exciter and controller design allows the ability to add an optional second controller/exciter for full control and redundancy in the event of an exciter or controller failure
• Ideal for N+1 Systems

Reliability

• Since 1959, BE has provided equipment to radio broadcasters that is designed to last for the long haul.
Designed and manufactured in the USA, the STX LP line of transmitters has been installed in over 1,400 locations since its introduction.
• 2nd Generation design includes updates to power supplies and fans, insuring an even longer transmitter life

Superior Remote Interface

STX GUI

All BE’s Transmitters feature SNMP Level III IP Connectivity:
• From your PC, your tablet, or your phone.
• Three Levels with password access: view only, limited access, and Chief with FULL CONTROL
• Overall Status at a glance or dig deeper to access each Power Amplifier, each Power Supply, and an advanced log for history.

STX10, STX20

High Power

10kW | 20kW

The STX 10, 20 have been intelligently designed to offer the perfect combination of audio quality, reliability, redundancy, serviceability and high energy efficiency in a compact design.

Efficiency

With an efficiency of greater than 70% AC to RF, electricity costs are saved immediately and for years to come

Serviceability & Redundancy

Power amplifier modules and hot-pluggable power supplies are all accessible from the front in the 10kW and 20kW models.

financing-icon-min
EQUIPMENT LEASING

Financing options available

Our equipment leasing professionals partners will create custom-designed financing based on your unique situation. Your needs will be met with fast approval and flexible rates

HD RADIO

HD Solutions from Broadcast Electronics

Broadcast Electronics’ HD Radio transmitters and generators are the choice for a majority of the converted radio stations in the U.S. and a large number of broadcast facilities overseas. Operating efficiency, easy configurability and on-the-fly operability are just a few of the reasons why

Elenos Radio Transmitters

State of the art technologies

Elenos transmitters combine ultra high efficiency, high reliability and low energy consumption in compact rack mountable units.

Elenos ET10000x Extreme

10kW in just 6RU Radio FM Transmitter

Continuous innovation in FM Broadcast. Analog and Digital modulation available

Suitable for: very high power stations in extremely small places, N+1 Systems, with very strong size reduction, reserve in high power N+1 systems, amplifier module for modern high power transmitters, jolly transmitter for any FM application

Elenos Indium Series

Low-Medium-High Power

From 150W to 60kW, analog and digital FM

These models can come with an amplifier and integrated modulator (exciter) in the same chassis (4U), or with a separate ETG 2U series low power modulator (exciter) and an E 4U series amplifier totaling 6U. These products represent the most advanced technology in terms of electrical efficiency, compactness, reduced weight, ease of use, and diagnostics.

BE-TEST RECEIVER

FM DIRECT SAMPLING TEST SYSTEM
AVATAR

The FMDSTS-AVATAR provides a unique continuous measurement of the audio Signal-to-Noise ratio without interrupting the on-air audio program content.

It is the ideal tool for engineers, perfect for master control monitoring and provides an excellent visual display for studio lobbies or anywhere you want people to “see” your radio station.

A & E Series

AM Transmitters

A Series 500W | 1kW | 6kW | 10kW
E Series 2.5kW | 5kW

Broadcast Electronics’ A Series AM transmitters produce superior audio quality for your listeners while maximizing reliability and redundancy, protecting your revenue stream from unexpected downtime. E Series transmitters incorporate our patented class E power modules, allowing you to achieve unequaled power economy and efficiencies for ultimate reliability and overall cost savings
